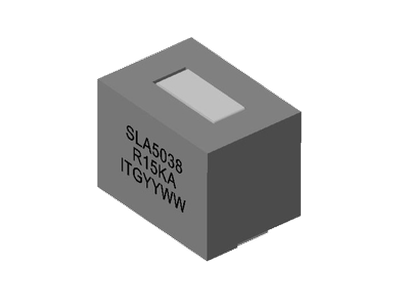

SLA5038A Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 150.0 nH to 270.0 nH , custom values are welcomed.
• High current output chokes,up to 102.0 Amp with approx. 20% roll off.
• Low profile 9.50 mm Max. height.
• 12.50 x 8.70
• 8.90 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 400pcs, 13'' Reel.
• Inductance range: 150.0 nH to 270.0 nH , custom values are welcomed.
• High current output chokes,up to 102.0 Amp with approx. 20% roll off.
• Low profile 9.50 mm Max. height.
• 12.50 x 8.70
• 8.90 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 400pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 0.27 | 0.37 | 41 | 72 | 12.5 | 8.7 | 0.27uH, 10%, 0.37mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.22 | 0.37 | 41 | 76 | 12.5 | 8.7 | 0.22uH, 10%, 0.37mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.18 | 0.37 | 41 | 87 | 12.5 | 8.9 | 0.18uH, 10%, 0.37mOhm, 87Amp Max. SMD Power bead | Data Sheet | ||
| 9.5 | 0.15 | 0.37 | 41 | 102 | 12.5 | 8.9 | 0.15uH, 10%, 0.37mOhm, 102Amp Max. SMD Power bead | Data Sheet |
