- SMD

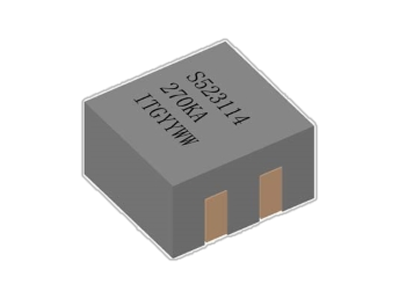

SLA523114A Series
• T & R Qtys: 400 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.8 | 0.27 | 0.27 | 46 | 52 | 14 | 13 | 0.27uH, 10%, 0.27mOhm, 52Amp Max. SMD Power bead | Data Sheet | ||
| 7.8 | 0.26 | 0.4 | 37 | 54 | 14 | 13 | 0.26uH, 10%, 0.4mOhm, 54Amp Max. SMD Power bead | Data Sheet |
