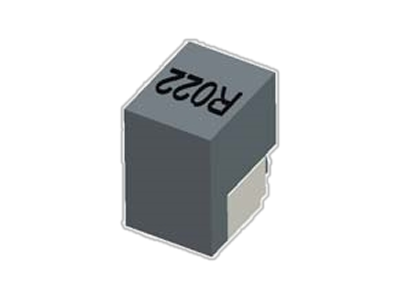

SLC1611 Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 41.00 Amp with approx. 20% roll off.
• Low Profile 3.00mm Max. height.
• Foot Print 4.00 x 4.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 2400 pcs, 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 41.00 Amp with approx. 20% roll off.
• Low Profile 3.00mm Max. height.
• Foot Print 4.00 x 4.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 2400 pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.022 | 0.23 | 22 | 41 | 4 | 4 | 0.022uH, 20%, 0.23mOhm, 41Amp Max. SMD Power bead | Data Sheet |
