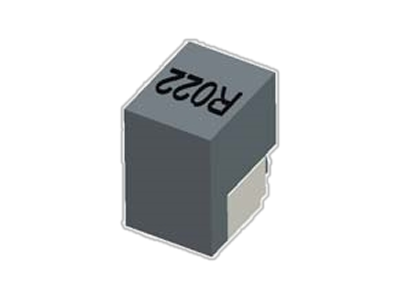

SLC1615 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:22.0nH to 10.0nH,Custom values are welcomed.
• High current output chokes, upto 60.0 Amp with approx. 20% roll off.
• Low Profile 3.9mm Max. height.
• Foot Print 4.0 x 4.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 2000 pcs , 13'' Reel
• Inductance Range:22.0nH to 10.0nH,Custom values are welcomed.
• High current output chokes, upto 60.0 Amp with approx. 20% roll off.
• Low Profile 3.9mm Max. height.
• Foot Print 4.0 x 4.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 2000 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3.9 | 0.022 | 0.23 | 22 | 60 | 4 | 4 | 0.022uH, 15%, 0.23mOhm, 60Amp Max. SMD Power bead | Data Sheet | ||
| 3.9 | 0.01 | 0.22 | 25 | 80 | 4 | 4 | 0.01uH, 20%, 0.22mOhm, 80Amp Max. SMD Power bead | Data Sheet |
