- SMD

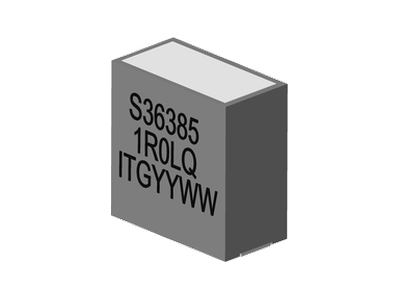

SLQ36385Q Series
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 0.33uH to 1.5uH, Custom values are welcomed.
• High current output chokes, up to 45.0 Amp with approx. 20% roll off.
• Low Profile 9.50 mm Max. height .
• Foot Print 9.00 x 5.00 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 500 pcs , 13'' Reel ;
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 0.33uH to 1.5uH, Custom values are welcomed.
• High current output chokes, up to 45.0 Amp with approx. 20% roll off.
• Low Profile 9.50 mm Max. height .
• Foot Print 9.00 x 5.00 mm .
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance .
• T & R Qtys: 500 pcs , 13'' Reel ;
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.5 | 1.5 | 0.95 | 25 | 7.5 | 9 | 5 | 1.5uH, 15%, 0.95mOhm, 7.5A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 1.2 | 0.95 | 25 | 10 | 9 | 5 | 1.2uH, 15%, 0.95mOhm, 10A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 1 | 0.95 | 25 | 12 | 9 | 5 | 1.0uH, 15%, 0.95mOhm, 12.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.68 | 0.95 | 25 | 18 | 9 | 5 | 0.68uH, 15%, 0.95mOhm, 18.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.56 | 0.95 | 25 | 21 | 9 | 5 | 0.56uH, 15%, 0.95mOhm, 21.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.47 | 0.95 | 25 | 28 | 9 | 5 | 0.47uH, 15%, 0.95mOhm, 28.0A Max. SMD Power Bead | Data Sheet | ||
| 9.5 | 0.33 | 0.95 | 25 | 45 | 9 | 5 | 0.33uH, 15%, 0.95mOhm, 45.0A Max. SMD Power Bead | Data Sheet |
