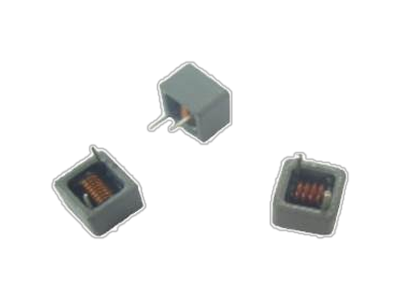

LR3124 Series

• Compact design to save board space.
• Inductance range: 0.47uH to 6.80uH. Custom values are welcomed.
• High current handle capability; up to 34 Amps.
• Ideal for desktop computers, servers, workstations, VGA card, set top box, routers, voltage-regulator modules & high density board design.
• RoHS & HF compliant.
• Operating Temperature Range: -55°C to +130°C.

Data Sheet

Specification of LR3124 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
LR3124-1R0MU	6	8.2	8.2	1uH, 20%, 4.7mOhm, 22Amp Max. DIP Power Cube	Data Sheet
LR3124-1R2MU	6	8.2	8.2	1.2uH, 20%, 4.7mOhm, 21Amp Max. DIP Power Cube	Data Sheet
LR3124-1R5MU	6	8.2	8.2	1.5uH, 20%, 6mOhm, 15Amp Max. DIP Power Cube	Data Sheet
LR3124-1R8MU	6	8.2	8.2	1.8uH, 20%, 10.4mOhm, 14Amp Max. DIP Power Cube	Data Sheet
LR3124-2R0MU	6	8.2	8.2	2uH, 20%, 10.4mOhm, 12Amp Max. DIP Power Cube	Data Sheet
LR3124-2R2MU	6	8.2	8.2	2.2uH, 20%, 11.5mOhm, 11Amp Max. DIP Power Cube	Data Sheet
LR3124-2R5MU	6	8.2	8.2	2.5uH, 20%, 11.5mOhm, 10Amp Max. DIP Power Cube	Data Sheet
LR3124-3R3MU	6	8.2	8.2	3.3uH, 20%, 14.5mOhm, 9Amp Max. DIP Power Cube	Data Sheet
LR3124-4R0MU	6	8.2	8.2	4uH, 20%, 19.5mOhm, 8Amp Max. DIP Power Cube	Data Sheet
LR3124-4R5MU	6	8.2	8.2	4.5uH, 20%, 23.5mOhm, 7Amp Max. DIP Power Cube	Data Sheet
LR3124-5R0MU	6	8.2	8.2	5uH, 20%, 29.5mOhm, 7Amp Max. DIP Power Cube	Data Sheet
LR3124-6R0MU	6	8.2	8.2	6uH, 20%, 38mOhm, 6Amp Max. DIP Power Cube	Data Sheet
LR3124-6R8MU	6	8.2	8.2	6.8uH, 20%, 45mOhm, 5.5Amp Max. DIP Power Cube	Data Sheet
LR3124-R47MU	6	8.2	8.2	0.47uH, 20%, 2.6mOhm, 0Amp Max. DIP Power Cube	Data Sheet
LR3124-R60MU	6	8.2	8.2	0.6uH, 20%, 2.6mOhm, 0Amp Max. DIP Power Cube	Data Sheet
LR3124-R80MU	6	8.2	8.2	0.8uH, 20%, 3mOhm, 0Amp Max. DIP Power Cube	Data Sheet
