- DIP

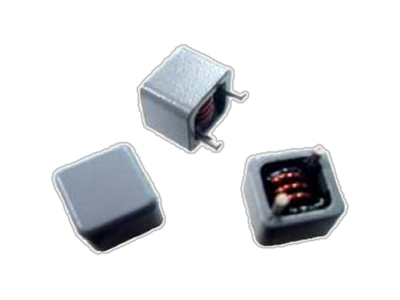

QS111109 Series
• Inductor with lower core loss for high frequency application.
• Inductance Range:0.30uH to 2.5uH. Custom values are welcomed.
• High current output chokes, up to 63 Amp.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
• Inductance Range:0.30uH to 2.5uH. Custom values are welcomed.
• High current output chokes, up to 63 Amp.
• Ideal for desktop computers,servers,workstations,VGA card ,High-End switches and routers,Voltage-regulator modules & High Density Board Design.
• Very low DC resistance and compact size,high performance,low cost.
• Operating Temperature Range -55°C to + 130°C; RoHs & HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9.5 | 11.7 | 11.7 | 1uH, 20%, 1.3mOhm, 35Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 1.2uH, 20%, 2.2mOhm, 34Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 1.5uH, 20%, 2.2mOhm, 33Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 2uH, 20%, 3.2mOhm, 31Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 2.5uH, 20%, 4.4mOhm, 29Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 0.3uH, 20%, 0.8mOhm, 63Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 0.4uH, 20%, 0.8mOhm, 60Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 0.47uH, 20%, 0.8mOhm, 52.5Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 0.6uH, 20%, 0.8mOhm, 43Amp Max. DIP Power Cube | Data Sheet | ||
| 9.5 | 11.7 | 11.7 | 0.8uH, 20%, 1.3mOhm, 42.5Amp Max. DIP Power Cube | Data Sheet |
