- DIP

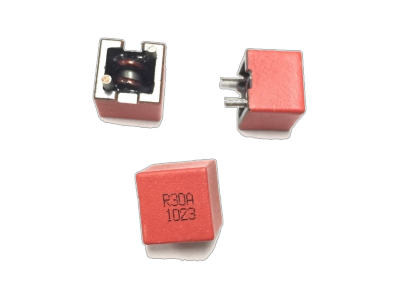

QS1210R Series
• Ferrite based Power Cube Inductor with lower core loss.
• Inductance Range:0.22uH to 4.7uH. custom values are welcomed.
• High current output chokes, up to 69.0 Amp.
• Ideal for desktop computers, server, workstations, VGA card, VRMs, and high density DC to DC converter application.
• Low DC resistance, compact size, high performance and low cost.
• Operating Temperature Range -55°C to + 130°C; RoHs&HF compliance.
• Inductance Range:0.22uH to 4.7uH. custom values are welcomed.
• High current output chokes, up to 69.0 Amp.
• Ideal for desktop computers, server, workstations, VGA card, VRMs, and high density DC to DC converter application.
• Low DC resistance, compact size, high performance and low cost.
• Operating Temperature Range -55°C to + 130°C; RoHs&HF compliance.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 10.5 | 12 | 12 | 1uH, 15%, 0.87mOhm, 24Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 1.5uH, 15%, 1.6mOhm, 23Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 2.2uH, 15%, 2.3mOhm, 19Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 3.3uH, 15%, 4.2mOhm, 17.5Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 3.9uH, 15%, 5.9mOhm, 16.5Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 4.7uH, 15%, 8.8mOhm, 15.5Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 0.22uH, 15%, 0.48mOhm, 69Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 0.33uH, 15%, 0.48mOhm, 53Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 0.47uH, 15%, 0.87mOhm, 51Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 0.68uH, 15%, 0.87mOhm, 44Amp Max. DIP Power Cube | Data Sheet | ||
| 10.5 | 12 | 12 | 0.82uH, 15%, 0.87mOhm, 33Amp Max. DIP Power Cube | Data Sheet |
