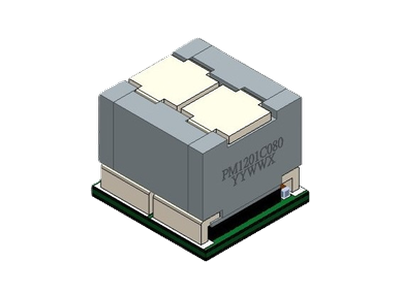

PM1201C080 Series
• 10 x 9x 8 mm compact footprint
• Maximum Peak Current: 140A
• Per phase 40 A, Dual output Maximum Continuous Current 80A
• Input Voltage Range from 5.0V to 16V
• Protections (OCP, UVP, OTP)
• Operating Temperature Range: -40°C to 125°C
• Maximum Peak Current: 140A
• Per phase 40 A, Dual output Maximum Continuous Current 80A
• Input Voltage Range from 5.0V to 16V
• Protections (OCP, UVP, OTP)
• Operating Temperature Range: -40°C to 125°C
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Vin | Vout | Iout | Application | Construction | Download | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 10 | 9 | I2C Programmable, Input 12v, Output 0.5~1.8V, 140Amp, Dual Output SMD Power Module | 12 | 0.5~1.8 | 140 | Server & Storage,DC/DC Converter | SMD | Data Sheet | Data Sheet |
