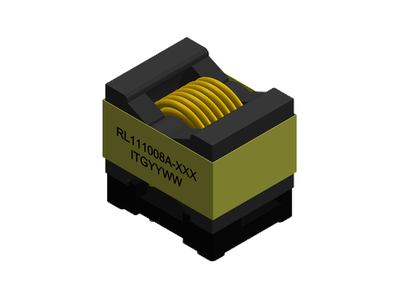

RL111008A Series

• Ferrite-Based Resonant Inductors or Chokes
• The inductance tolerance of 5%
• Inductance range:3.0uH to 65.0uH,custom values are welcomed
• High current output chokes, up to 64.0Amp with approx. 30% roll off
• Maximum footprint: 27.5 x 21.0 mm, with a maximum height of 26.0 mm
• Rated voltage: 600VAC, 1000VDC
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant

Data Sheet

Specification of RL111008A Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Dimension L (mm) Max	Dimension W (mm) Max	Description
RL111008A-120J	26	27.5	21	Ferrite Based Resonant Inductor 12.0uH, 25.0Amp, 3.0mOhm DCR, 53.0mOhm ACR
RL111008A-200J	26	27.5	21	Ferrite Based Resonant Inductor 20.0uH, 25.0Amp, 7.4mOhm DCR, 125mOhm ACR
RL111008A-270J	26	27.5	21	Ferrite Based Resonant Inductor 27.0uH, 18.0Amp, 7.4mOhm DCR, 160mOhm ACR
RL111008A-330J	26	27.5	21	Ferrite Based Resonant Inductor 33.0uH, 14.0Amp, 7.4mOhm DCR, 170mOhm ACR
RL111008A-370J	26	27.5	21	Ferrite Based Resonant Inductor 37.0uH, 18.5Amp, 19.0mOhm DCR, 230mOhm ACR
RL111008A-3R0J	26	27.5	21	Ferrite Based Resonant Inductor 3.0uH, 64.0Amp, 1.7mOhm DCR, 20.0mOhm ACR
RL111008A-4R3J	26	27.5	21	Ferrite Based Resonant Inductor 4.3uH, 46.0Amp, 1.7mOhm DCR, 25.0mOhm ACR
RL111008A-530J	26	27.5	21	Ferrite Based Resonant Inductor 53.0uH, 13.0Amp, 19.0mOhm DCR, 290mOhm ACR
RL111008A-5R3J	26	27.5	21	Ferrite Based Resonant Inductor 5.3uH, 37.0Amp, 1.7mOhm DCR, 28.0mOhm ACR
RL111008A-650J	26	27.5	21	Ferrite Based Resonant Inductor 65.0uH, 10.0Amp, 19.0mOhm DCR, 320mOhm ACR
RL111008A-8R0J	26	27.5	21	Ferrite Based Resonant Inductor 8.0uH, 37.5Amp, 3.0mOhm DCR, 42.0mOhm ACR
RL111008A-9R7J	26	27.5	21	Ferrite Based Resonant Inductor 9.7uH, 31.0Amp, 3.0mOhm DCR, 46.0mOhm ACR
