- SMD

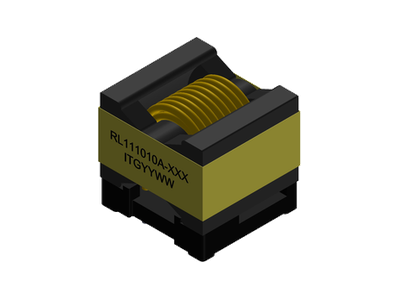

RL111010A Series
• Ferrite-Based Resonant Inductors or Chokes
• The inductance tolerance of 5%
• Inductance range:16.7uH to 200.0uH,custom values are welcomed
• High current output chokes, up to 32.0Amp with approx. 30% roll off
• Maximum footprint: 27.5 x 25.5 mm, with a maximum height of 26.0 mm
• Rated voltage: 600VAC, 1000VDC.
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
• The inductance tolerance of 5%
• Inductance range:16.7uH to 200.0uH,custom values are welcomed
• High current output chokes, up to 32.0Amp with approx. 30% roll off
• Maximum footprint: 27.5 x 25.5 mm, with a maximum height of 26.0 mm
• Rated voltage: 600VAC, 1000VDC.
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 120.0uH, 8.0Amp, 42.4mOhm DCR, 870mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 16.7uH, 26.0Amp, 5.8mOhm DCR, 180mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 200.0uH, 5.0Amp, 42.4mOhm DCR, 12200mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 23.6uH, 18.0Amp, 5.8mOhm DCR, 190mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 37.6uH, 17.5Amp, 20.4mOhm DCR, 300mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 39.5uH, 11.0Amp, 5.8mOhm DCR, 2400mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 53.0uH, 12.5Amp, 20.4mOhm DCR, 380mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 80.0uH, 12.0Amp, 42.4mOhm DCR, 700mOhm ACR | ||
| 26 | 27.5 | 25.5 | Ferrite Based Resonant Inductor 88.8uH, 7.5Amp, 20.4mOhm DCR, 520mOhm ACR |
