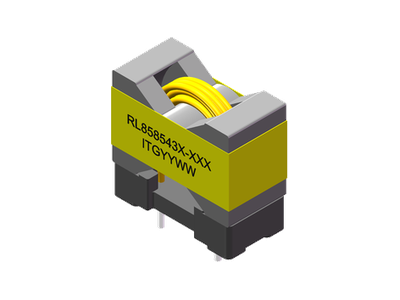

RL858543 Series
• Ferrite-Based Resonant Inductors or Chokes
• The inductance tolerance of 5% and 10%
• Inductance range:8.5uH to 200.0uH,custom values are welcomed
• High current output chokes, up to 21.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 11.0 mm, with a maximum height of 21.5 mm.
• Rated voltage: 600VAC, 1000VDC.
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
• The inductance tolerance of 5% and 10%
• Inductance range:8.5uH to 200.0uH,custom values are welcomed
• High current output chokes, up to 21.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 11.0 mm, with a maximum height of 21.5 mm.
• Rated voltage: 600VAC, 1000VDC.
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 116.0uH, 2.6Amp, 49.65mOhm DCR, 595.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 120.0uH, 3.2Amp, 101.55mOhm DCR, 550.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 20.0uH, 9.0Amp, 16.47mOhm DCR, 105.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 200.0uH, 2.0Amp, 101.55mOhm DCR, 840.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 27.0uH, 12.0Amp, 49.65mOhm DCR, 195.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 37.0uH, 4.5Amp, 16.47mOhm DCR, 190.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 51.0uH, 9.0Amp, 101.55mOhm DCR, 350.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 64.0uH, 5.0Amp, 49.65mOhm DCR, 310.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 11 | Ferrite Based Resonant Inductor 8.5uH, 21.0Amp, 16.47mOhm DCR, 65.0mOhm ACR | Data Sheet |
