- DIP

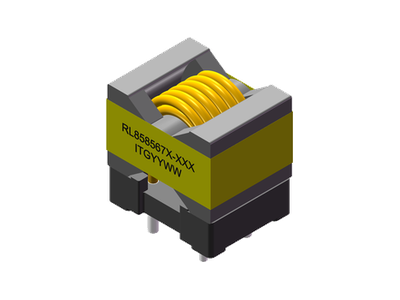

RL858567 Series
• Ferrite-Based Resonant Inductors or Chokes
• The inductance tolerance of 5%
• Inductance range:18.0uH to 48.0uH,custom values are welcomed
• High current output chokes, up to 15.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 17.0 mm, with a maximum height of 21.5 mm
• Rated voltage: 600VAC, 1000VDC
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
• The inductance tolerance of 5%
• Inductance range:18.0uH to 48.0uH,custom values are welcomed
• High current output chokes, up to 15.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 17.0 mm, with a maximum height of 21.5 mm
• Rated voltage: 600VAC, 1000VDC
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 18.0uH, 15.0Amp, 11.75mOhm DCR, 115.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 22.0uH, 12.0Amp, 11.75mOhm DCR, 125.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 27.0uH, 10.0Amp, 11.75mOhm DCR, 150.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 33.0uH, 10.5Amp, 26.65mOhm DCR, 200.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 39.0uH, 9.0Amp, 26.65mOhm DCR, 225.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 17 | Ferrite Based Resonant Inductor 48.0uH, 7.5Amp, 26.65mOhm DCR, 270.0mOhm ACR | Data Sheet |
