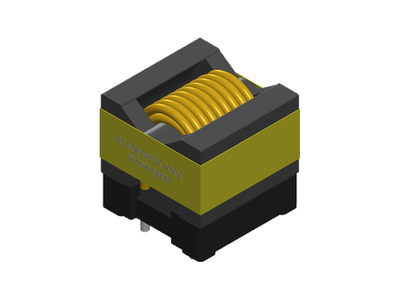

RL858583 Series
• Ferrite-Based Resonant Inductors or Chokes
• The inductance tolerance of 5%
• Inductance range:6.8uH to 22.0uH,custom values are welcomed
• High current output chokes, up to 39.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 21.0 mm, with a maximum height of 21.5 mm
• Rated voltage: 600VAC, 1000VDC
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
• The inductance tolerance of 5%
• Inductance range:6.8uH to 22.0uH,custom values are welcomed
• High current output chokes, up to 39.0Amp with approx. 30% roll off
• Maximum footprint: 21.5 x 21.0 mm, with a maximum height of 21.5 mm
• Rated voltage: 600VAC, 1000VDC
• Dielectric strength:4500VDC(winding to core)
• Operating temperature range: -55 ℃ to +130 ℃, RoHs & HF compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 11.5uH, 22.0Amp, 3.94mOhm DCR, 90.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 11.8uH, 32.0Amp, 11.95mOhm DCR, 140.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 15.0uH, 28.0Amp, 17.4mOhm DCR, 165.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 17.0uH, 22.0Amp, 11.95mOhm DCR, 175.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 22.0uH, 20.0Amp, 17.4mOhm DCR, 200.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 6.8uH, 37.0Amp, 3.94mOhm DCR, 70.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 8.2uH, 30.0Amp, 3.94mOhm DCR, 75.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 9.5uH, 39.0Amp, 11.95mOhm DCR, 120.0mOhm ACR | Data Sheet | ||
| 21.5 | 21.5 | 21 | Ferrite Based Resonant Inductor 12.0uH, 36.0Amp, 17.4mOhm DCR, 145.0mOhm ACR | Data Sheet |
