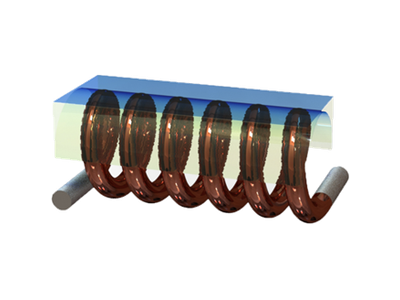

L101377A Series
• Miniature air core inductors feature high Q and tight tolerances.
• Low profile 3.15 mm max. height.
• Acrylic jacket provides a flat top for pick and place.
• Operating frequency of up to 100 MHz.
• Inductance Range: 17.5nH to 43.0 nH , custom values are welcomed.
• Operating Temperature Range: -40°C to + 125°C.
• T & R Qtys: 2000 pcs , 13'' Reel with plastic tape 16mm wide and 8mm pocket spacing.
• RoHs & HF Compliant.
• Low profile 3.15 mm max. height.
• Acrylic jacket provides a flat top for pick and place.
• Operating frequency of up to 100 MHz.
• Inductance Range: 17.5nH to 43.0 nH , custom values are welcomed.
• Operating Temperature Range: -40°C to + 125°C.
• T & R Qtys: 2000 pcs , 13'' Reel with plastic tape 16mm wide and 8mm pocket spacing.
• RoHs & HF Compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 3.15 | 6.86 | 3.2 | 17.5nH, 5%, 4.5mOhm, 4.0A Max. SMD Rod Choke | Data Sheet | ||
| 3.15 | 6.86 | 3.2 | 22.0nH, 5%, 5.2mOhm, 4.0A Max. SMD Rod Choke | Data Sheet | ||
| 3.15 | 6.86 | 3.2 | 28.0nH, 5%, 6.0mOhm, 4.0A Max. SMD Rod Choke | Data Sheet | ||
| 3.15 | 6.86 | 3.2 | 35.5nH, 5%, 6.8mOhm, 4.0A Max. SMD Rod Choke | Data Sheet |
