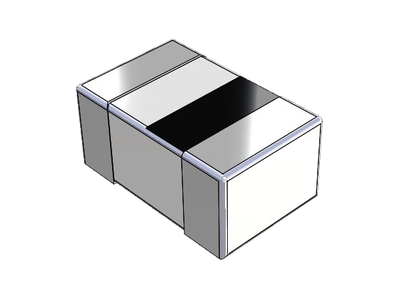

CF100505 Series
• Ceramic Inductor in a 0402 foot print.
• Inductance Range:1.0nH to 220nH. Custom values are welcomed.
• Low Profile 0.55 mm Max. height.
• Operating Temperature Range -55°C to + 125°C.
• Storage Temperature Range -40°C to + 85°C.
• Application:
• RF circuit and module.
• Mother board, tablet PC, notebook, desktop computers and peripheral equipment.
• DSC, DVC, LCD Television, Set Top Box.
• Mobile phone, smart phone, PND.
• Digital communication equipment.
• Various electronic equipment.
• Various automotive electronics.
• Inductance Range:1.0nH to 220nH. Custom values are welcomed.
• Low Profile 0.55 mm Max. height.
• Operating Temperature Range -55°C to + 125°C.
• Storage Temperature Range -40°C to + 85°C.
• Application:
• RF circuit and module.
• Mother board, tablet PC, notebook, desktop computers and peripheral equipment.
• DSC, DVC, LCD Television, Set Top Box.
• Mobile phone, smart phone, PND.
• Digital communication equipment.
• Various electronic equipment.
• Various automotive electronics.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 0.55 | 1.1 | 0.55 | 10nH, 5%, 0.35Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 12nH, 5%, 0.41Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 15nH, 5%, 0.46Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 18nH, 5%, 0.51Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1nH, 0.1nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1nH, 0.3nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.2nH, 0.1nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.2nH, 0.3nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.15nH, 0.1nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.15nH, 0.3nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.8nH, 0.1nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 1.8nH, 0.3nH, 0.1Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 22nH, 5%, 0.58Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 27nH, 5%, 0.67Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 2.2nH, 0.1nH, 0.15Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 2.2nH, 0.3nH, 0.15Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 2.7nH, 0.1nH, 0.17Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 2.7nH, 0.3nH, 0.17Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 33nH, 5%, 0.67Ohm, 200mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 39nH, 5%, 1.06Ohm, 200mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 3nH, 0.1nH, 0.18Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 3nH, 0.3nH, 0.18Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 3.9nH, 0.1nH, 0.19Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 3.9nH, 0.3nH, 0.19Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 47nH, 5%, 1.15Ohm, 200mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 4.7nH, 0.1nH, 0.23Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 4.7nH, 0.3nH, 0.23Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 56nH, 5%, 1.2Ohm, 200mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 5.6nH, 0.1nH, 0.26Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 5.6nH, 0.3nH, 0.26Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 68nH, 5%, 1.25Ohm, 180mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 6.8nH, 5%, 0.29Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 82nH, 5%, 1.6Ohm, 150mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 8.2nH, 5%, 0.33Ohm, 300mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 100nH, 5%, 1.6Ohm, 150mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 120nH, 5%, 1.6Ohm, 150mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 150nH, 5%, 2.99Ohm, 140mAmp Max. SMD chip inductor | Data Sheet | |
| 0.55 | 1.1 | 0.55 | 220nH, 5%, 3.77Ohm, 120mAmp Max. SMD chip inductor | Data Sheet |
