- SMD

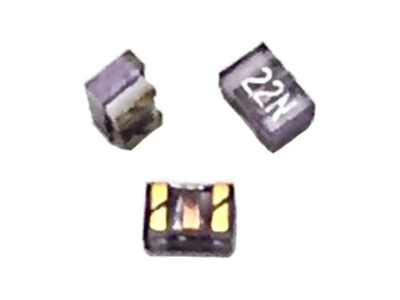

CM0805 Series
• Ceramic base core material for high frequency application.
• Low profile 1.52 mm max height 2.29 x 1.73 mm max Foot print.
• Inductance range: 2.2 nH up to 910.0 nH. Custom values are welcomed
• High self resonant frequency for high Q value.
• Tape & Reel Qtys: 2,000pcs on 7” Reel. RoHS & HF compliant.
• Low profile 1.52 mm max height 2.29 x 1.73 mm max Foot print.
• Inductance range: 2.2 nH up to 910.0 nH. Custom values are welcomed
• High self resonant frequency for high Q value.
• Tape & Reel Qtys: 2,000pcs on 7” Reel. RoHS & HF compliant.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 1.52 | 2.29 | 1.73 | 10.0nH, 600mA I Max, 140mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 12.0nH, 600mA I Max, 150mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 15nH, 600mA I Max, 170mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 2.2nH, 600mA I Max, 200mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 22nH, 5 00mA I Max, 220mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 27nH, 5 00mA I Max, 250mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 2.2nH, 600mA I Max, 100mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 33nH, 5 00mA I Max, 270mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 39nH, 5 00mA I Max, 290mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 3.3nH, 600mA I Max, 150mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 47nH, 500mA I Max, 310mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 6.8nH, 600mA I Max, 110mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 8.2nH, 600mA I Max, 190mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 100nH, 400mA I Max, 460mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 120nH, 400mA I Max, 510mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 150nH, 400mA I Max, 560mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 180nH, 400mA I Max, 640mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 220nH, 400mA I Max, 700mOhm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 270nH, 350mA I Max, 1.00Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 330nH, 350mA I Max, 1.50Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 330nH, 290mA I Max, 1.70Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 470nH, 250mA I Max, 1.76Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 560nH, 230mA I Max, 1.90Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 680nH, 190mA I Max, 2.20Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 820nH, 180mA I Max, 2.35Ohm DCR Inductor for high frequency | Data Sheet | ||
| 1.52 | 2.29 | 1.73 | 910nH, 160mA I Max, 3.00Ohm DCR Inductor for high frequency | Data Sheet |
