- SMD

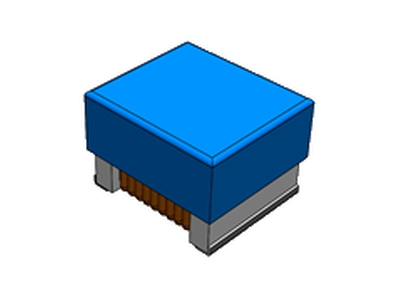

CM352115A Series
• 1206 Foot print, 1.52mm height for Signal Line application.
• Inductance range from 6.8nH to 1,800.0nH.
• Can be used for high frequency bands up to GHz and stable inductance at high frequency.
• Resin-coated surface enables excellent mounting
• RoHS, Halogen Free and Reach Compliant
• Operating Temperature Range -40°C to + 125°C.
• Inductance range from 6.8nH to 1,800.0nH.
• Can be used for high frequency bands up to GHz and stable inductance at high frequency.
• Resin-coated surface enables excellent mounting
• RoHS, Halogen Free and Reach Compliant
• Operating Temperature Range -40°C to + 125°C.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 1.52 | 3.56 | 2.16 | 10nH, 5%, 0.08Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 10nH, 10%, 0.08Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 12nH, 5%, 0.08Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 12nH, 10%, 0.08Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 15nH, 5%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 15nH, 10%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1000nH, 5%, 2.8Ohm, 320mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1000nH, 10%, 2.8Ohm, 320mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1200nH, 5%, 3.2Ohm, 300mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1200nH, 10%, 3.2Ohm, 300mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1800nH, 5%, 3.9Ohm, 300mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 1800nH, 10%, 3.9Ohm, 300mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 22nH, 5%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 22nH, 10%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 24nH, 5%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 24nH, 10%, 0.1Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 27nH, 2%, 0.11Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 27nH, 5%, 0.11Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 27nH, 10%, 0.11Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 33nH, 5%, 0.14Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 33nH, 10%, 0.14Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 39nH, 5%, 0.12Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 39nH, 10%, 0.12Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 47nH, 2%, 0.19Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 47nH, 5%, 0.19Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 47nH, 10%, 0.19Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 56nH, 5%, 0.22Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 56nH, 10%, 0.22Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 62nH, 5%, 0.2Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 62nH, 10%, 0.2Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 68nH, 5%, 0.27Ohm, 900mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 68nH, 10%, 0.27Ohm, 900mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 6.8nH, 5%, 0.07Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 6.8nH, 10%, 0.07Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 82nH, 5%, 0.26Ohm, 860mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 82nH, 10%, 0.26Ohm, 860mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 8.20nH, 5%, 0.18Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 8.20nH, 10%, 0.18Ohm, 1000mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 91nH, 5%, 0.24Ohm, 900mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 91nH, 10%, 0.24Ohm, 900mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 100nH, 5%, 0.26Ohm, 850mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 100nH, 10%, 0.26Ohm, 850mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 120nH, 5%, 0.32Ohm, 800mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 120nH, 10%, 0.32Ohm, 800mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 150nH, 5%, 0.36Ohm, 750mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 150nH, 10%, 0.36Ohm, 750mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 180nH, 2%, 0.43Ohm, 700mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 180nH, 5%, 0.43Ohm, 700mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 180nH, 10%, 0.43Ohm, 700mAmp Max.SMD Small Signal Inductor | Data Sheet | |
| 1.52 | 3.56 | 2.16 | 220nH, 5%, 0.5Ohm, 670mAmp Max.SMD Small Signal Inductor | Data Sheet |
