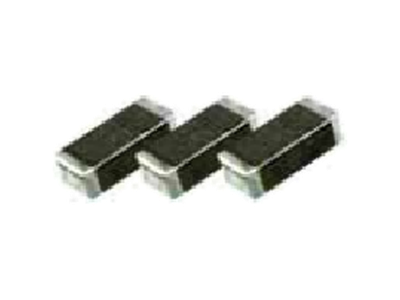

CP201209 Series
• High Power Multilayer Ferrite Inductor in a 0805 foot print.
• Inductance Range:0.47H to 4.7uH. Custom values are welcomed.
• High current capability for high efficient power conversion.
• Low Profile 1.0 mm Max. height.
• Operating Temperature Range -55°C to + 125°C.
• Storage Temperature Range -10°C to + 40°C.
• Ideally for Mobile Device, Digital Camera and Game Consoles applications.
• Inductance Range:0.47H to 4.7uH. Custom values are welcomed.
• High current capability for high efficient power conversion.
• Low Profile 1.0 mm Max. height.
• Operating Temperature Range -55°C to + 125°C.
• Storage Temperature Range -10°C to + 40°C.
• Ideally for Mobile Device, Digital Camera and Game Consoles applications.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 1 | 2.2 | 1.45 | 1uH, 20%, 0.16Ohm, 800mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 1.5uH, 20%, 0.22Ohm, 700mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 1.8uH, 20%, 0.22Ohm, 700mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 2.2uH, 20%, 0.25Ohm, 600mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 3.3uH, 20%, 0.22Ohm, 500mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 4.7uH, 20%, 0.3Ohm, 500mAmp Max. SMD chip inductor | Data Sheet | |
| 1 | 2.2 | 1.45 | 0.47uH, 20%, 0.1Ohm, 1100mAmp Max. SMD chip inductor | Data Sheet |
