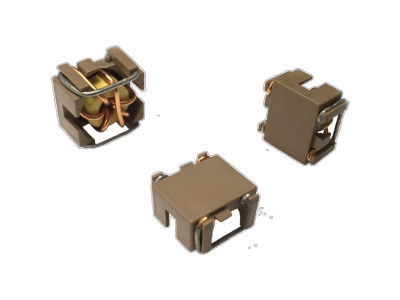

BT9340A Series
• Iron Powder based SMD Inductor with steady temperature performance.
• Inductance Range:10uH to 68uH. Custom values are welcome.
• High current output chokes, up to 8.0 Amp with max. 35% roll off.
• Low Profile 10.5mm Max. height .
• Foot Print 23.8 x 23.8 mm Max.Ideal chokes for High reliability & High Density Board Design.
• Operating Temperature Range -40°C to + 125°C
• Inductance Range:10uH to 68uH. Custom values are welcome.
• High current output chokes, up to 8.0 Amp with max. 35% roll off.
• Low Profile 10.5mm Max. height .
• Foot Print 23.8 x 23.8 mm Max.Ideal chokes for High reliability & High Density Board Design.
• Operating Temperature Range -40°C to + 125°C
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 10.5 | 23.8 | 23.8 | 10.24uH, 20%, 7.6mOhm, 8Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 16uH, 20%, 10.2mOhm, 6.6Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 17.64uH, 20%, 14.2mOhm, 5.5Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 23.04uH, 20%, 15.6mOhm, 5.5Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 33.64uH, 20%, 22mOhm, 4.5Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 38.44uH, 20%, 27.8mOhm, 4.1Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 46.24uH, 20%, 33.4mOhm, 3.8Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 67.24uH, 20%, 45.7mOhm, 3.1Amp Max. SMD Shielded Inductor | Data Sheet |
