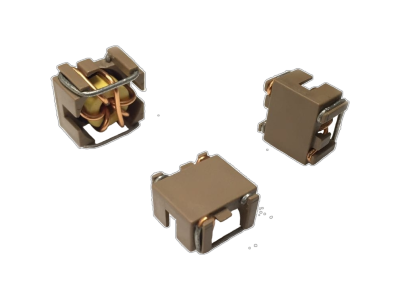

BT9340B Series
• Iron Powder based SMD Inductor with steady temperature performance.
• Inductance Range: 9.5uH to 68uH.Custom values are welcomed.
• High current output chokes, upto 12 Amp with max. 35% roll off.
• Low Profile 10.5mm Max. height .
• Foot Print 23.8 x 23.8 mm Max.
• Ideal chokes for High reliability & High Density Board Design.
• Operating Temperature Range -40°C to + 125°C
• Inductance Range: 9.5uH to 68uH.Custom values are welcomed.
• High current output chokes, upto 12 Amp with max. 35% roll off.
• Low Profile 10.5mm Max. height .
• Foot Print 23.8 x 23.8 mm Max.
• Ideal chokes for High reliability & High Density Board Design.
• Operating Temperature Range -40°C to + 125°C
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 10.5 | 23.8 | 23.8 | 9.39uH, 20%, 8.7mOhm, 12Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 14.04uH, 20%, 12.7mOhm, 10Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 18.13uH, 20%, 15.8mOhm, 9Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 21.14uH, 20%, 21.8mOhm, 8Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 33.52uH, 20%, 30mOhm, 6.5Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 39.7uH, 20%, 37mOhm, 5.8Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 46.4uH, 20%, 44mOhm, 5.4Amp Max. SMD Shielded Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 66.82uH, 20%, 62mOhm, 4.6Amp Max. SMD Shielded Inductor | Data Sheet |
