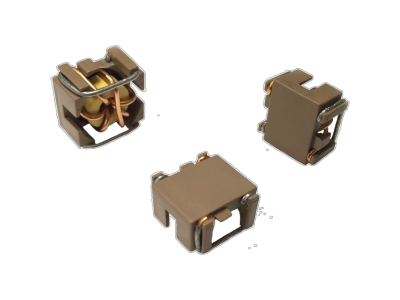

BT9340C Series
• Alloy core based SMD Inductor with lower core loss , no Thermal Aging concerns.
• Inductance Range:10.0uH to 33.0uH. Custom values are welcomed.
• High current output chokes , up to 10.0 Amp with Max. 35% roll off.
• Low Profile 10.50mm Max. height.
• Foot Print 23.80 x 23.80 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating Temperature Range -40°C to + 130°C .RoHs & HF compliant.
• T & R Qtys: 150 pcs , 13'' Reel.
• Inductance Range:10.0uH to 33.0uH. Custom values are welcomed.
• High current output chokes , up to 10.0 Amp with Max. 35% roll off.
• Low Profile 10.50mm Max. height.
• Foot Print 23.80 x 23.80 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating Temperature Range -40°C to + 130°C .RoHs & HF compliant.
• T & R Qtys: 150 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 10.5 | 23.8 | 23.8 | 10uH, 20%, 7mOhm, 10Amp Max. SMD Toroidal Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 18uH, 20%, 14.5mOhm, 6.8Amp Max. SMD Toroidal Inductor | Data Sheet | ||
| 10.5 | 23.8 | 23.8 | 33uH, 20%, 22mOhm, 5Amp Max. SMD Toroidal Inductor | Data Sheet |
