- DIP

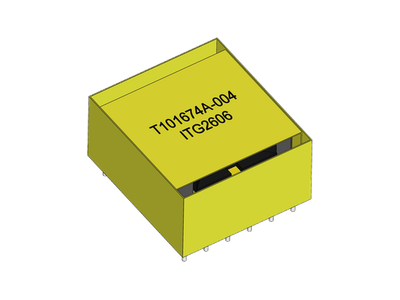

T101674A Series
• 140W USB PD3.1 Application
• 29.50 x 33.00 mm max Footprint, lower profile 16.00 mm max Height
• Lm: 230.0μH±10%, Lk: 3.50uH Max, Isat: 4.0A 20% Drop
• Hi-Pot (Pri, Aux to Sec): AC3.65KV
• 5mA
• 1S
• 50
• 60Hz
• Operating Temperature Range -40°C to +125°C
• RoHS & HF Compliant
• 29.50 x 33.00 mm max Footprint, lower profile 16.00 mm max Height
• Lm: 230.0μH±10%, Lk: 3.50uH Max, Isat: 4.0A 20% Drop
• Hi-Pot (Pri, Aux to Sec): AC3.65KV
• 5mA
• 1S
• 50
• 60Hz
• Operating Temperature Range -40°C to +125°C
• RoHS & HF Compliant
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|
| 16 | 29.5 | 33 | 230.00uH, 10%, 14.00mOhm to 650.0mOhm DCR, 140W PD3.1, DIP Transformer | Data Sheet | 3D Step File | Data Sheet |
