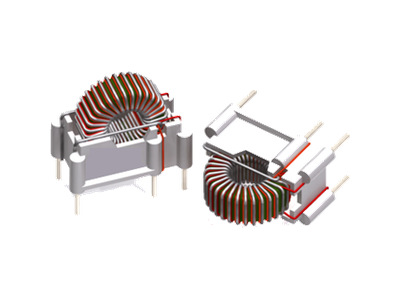

T201213 Series
• Meets medical safety isolation requirements.
• Designed for frequencies from 20KHz to 300KHz.
• Available in UL Class B (130℃) Versions .
• Ideal for Gate Drive Transformer, Signal Transformer Across Isolation Barrier ,
• Off-Line AC
• DC Converters and High-powered DC
• DC Converters.
• Operating temperature range: −40°C to +130°C .
• RoHS & HF compliance Components.
• Designed for frequencies from 20KHz to 300KHz.
• Available in UL Class B (130℃) Versions .
• Ideal for Gate Drive Transformer, Signal Transformer Across Isolation Barrier ,
• Off-Line AC
• DC Converters and High-powered DC
• DC Converters.
• Operating temperature range: −40°C to +130°C .
• RoHS & HF compliance Components.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.356uH Primary Inductance, 25%, 200mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.356uH Primary Inductance, 25%, 200mOhm DCR Max. 200Vdc Rated. DIP Transform | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.039uH Primary Inductance, 25%, 40mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.039uH Primary Inductance, 25%, 40mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.634uH Primary Inductance, 25%, 450mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.634uH Primary Inductance, 25%, 450mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.158uH Primary Inductance, 25%, 70mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.99uH Primary Inductance, 25%, 900mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.99uH Primary Inductance, 25%, 900mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.356uH Primary Inductance, 25%, 200mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 1.42uH Primary Inductance, 25%, 2500mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 1.42uH Primary Inductance, 25%, 2500mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.634uH Primary Inductance, 25%, 450mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.634uH Primary Inductance, 25%, 450mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.99uH Primary Inductance, 25%, 900mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.99uH Primary Inductance, 25%, 900mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 1.42uH Primary Inductance, 25%, 2500mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 1.42uH Primary Inductance, 25%, 2500mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.7uH Primary Inductance, 25%, 300mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.7uH Primary Inductance, 25%, 300mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.7uH Primary Inductance, 25%, 300mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.7uH Primary Inductance, 25%, 300mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.247uH Primary Inductance, 25%, 40mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.247uH Primary Inductance, 25%, 40mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.247uH Primary Inductance, 25%, 40mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.247uH Primary Inductance, 25%, 40mOhm DCR Max. 4500Vdc Rated. DIP Trans | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.99uH Primary Inductance, 25%, 70mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.99uH Primary Inductance, 25%, 70mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.45uH Primary Inductance, 25%, 100mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.45uH Primary Inductance, 25%, 100mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.22uH Primary Inductance, 25%, 200mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.22uH Primary Inductance, 25%, 200mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.686uH Primary Inductance, 25%, 780mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.686uH Primary Inductance, 25%, 780mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 3.96uH Primary Inductance, 25%, 500mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 3.96uH Primary Inductance, 25%, 500mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.99uH Primary Inductance, 25%, 70mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 0.99uH Primary Inductance, 25%, 70mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 6.18uH Primary Inductance, 25%, 1000mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 6.18uH Primary Inductance, 25%, 1000mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.22uH Primary Inductance, 25%, 200mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 2.22uH Primary Inductance, 25%, 200mOhm DCR Max. 4500Vdc Rated. DIP Transforme | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 8.91uH Primary Inductance, 25%, 2700mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 8.91uH Primary Inductance, 25%, 2700mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 3.96uH Primary Inductance, 25%, 500mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 3.96uH Primary Inductance, 25%, 500mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.039uH Primary Inductance, 25%, 40mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:2.5:2.5 Turns Ratio, 0.039uH Primary Inductance, 25%, 40mOhm DCR Max. 200Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 6.18uH Primary Inductance, 25%, 1000mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet | ||
| 19.05 | 20.57 | 12.19 | 1:1:1 Turns Ratio, 6.18uH Primary Inductance, 25%, 1000mOhm DCR Max. 4500Vdc Rated. DIP Transformer | Data Sheet |
