- DIP

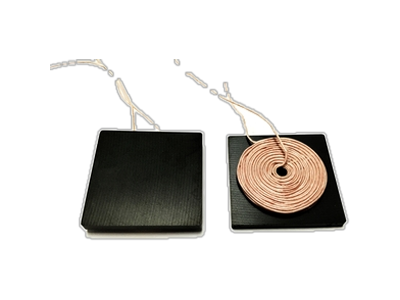

L41200R06 Series
• Open Circuit Inductance (OCL): 49uH Typ at 125KHz,1.0Vrms,0Adc;(Ta=25вJ).
• Q Value 70 typical. at 125KHz,1.0Vrms;(Ta=25вJ).
• DCR: 0.53г[ Max.;(Ta=25вJ).
• 30.5x30.5mm foot print.
• 6.2mm height max..
• Operating temperature: -40вJбу+105вJ.
• Q Value 70 typical. at 125KHz,1.0Vrms;(Ta=25вJ).
• DCR: 0.53г[ Max.;(Ta=25вJ).
• 30.5x30.5mm foot print.
• 6.2mm height max..
• Operating temperature: -40вJбу+105вJ.
