SM5015A Series

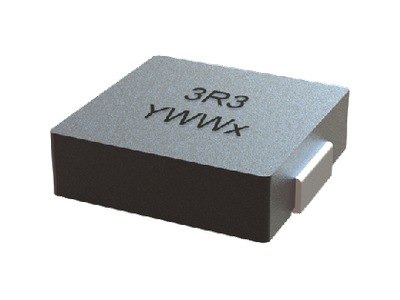

• 13.80 x 12.90mm Foot Print , 4.00mm Max. height SMD Power Inductor for high
• frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.68uH to 22.00 uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55°C to 125°C .
• Tape & Reel Quantity: 500 piece per 13 inches reel. RoHS and HF compliant.
• frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.68uH to 22.00 uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55°C to 125°C .
• Tape & Reel Quantity: 500 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 10 | 19.15 | 8 | 10 | 13.8 | 12.9 | 10.0uH, 20%, 19.15mOhm, 10A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 1.5 | 4.96 | 20 | 35 | 13.8 | 12.9 | 1.50uH, 20%, 4.96mOhm, 35A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 22 | 41.69 | 4.5 | 6.5 | 13.8 | 12.9 | 22.0uH, 20%, 41.69mOhm, 6.5A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 2.2 | 6.22 | 18 | 26 | 13.8 | 12.9 | 2.20uH, 20%, 6.22mOhm, 26A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 3.3 | 8.55 | 15 | 22 | 13.8 | 12.9 | 3.30uH, 20%, 8.55mOhm, 22A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 4.7 | 11.32 | 13 | 18 | 13.8 | 12.9 | 4.70uH, 20%, 11.32mOhm, 18A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 6.8 | 16.73 | 9 | 14 | 13.8 | 12.9 | 6.80uH, 20%, 16.73mOhm, 14A Max. SMD Molded Inductor | Data Sheet | ||
| 4 | 0.68 | 1.45 | 28 | 47 | 13.8 | 12.9 | 0.1uH, 20%, 1.45mOhm, 75A Max, SMD Molded Inductor | Data Sheet | ||
| 4 | 0.82 | 3.73 | 28 | 40 | 13.8 | 12.9 | 0.82uH, 20%, 3.73mOhm, 40A Max. SMD Molded Inductor | Data Sheet |
