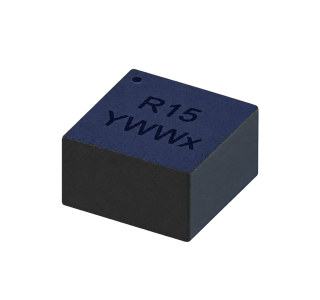

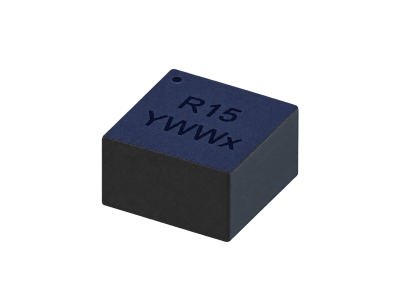

SMF2515A Series
•6.60 x 6.80 mm foot Print, 4.00mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz.
•Inductance range from 0.15uH to 2.20uH. Custom values are welcomed.
•High saturation current characteristics by distributed gapped metal dust core.
•Ideal for portable device, Pad, E-reader and high densityDC to DC Converter.
•Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
•T & R Qtys: 1000 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|---|---|---|---|
| 4 | 1 | 3.9 | 21 | 30 | 6.6 | 6.8 | 1.00uH, 20%, 3.90mOhm, 30.0A Max. SMD Molded Inductor | ||
| 4 | 1.5 | 5.35 | 17 | 25 | 6.6 | 6.8 | 1.50uH, 20%, 5.35mOhm, 25.0A Max. SMD Molded Inductor | ||
| 4 | 2.2 | 8.65 | 13.5 | 20 | 6.6 | 6.8 | 2.20uH, 20%, 8.65mOhm, 20.0A Max. SMD Molded Inductor | ||
| 4 | 0.15 | 0.65 | 50 | 69 | 6.6 | 6.8 | 0.15uH, 20%, 0.65mOhm, 69.0A Max. SMD Molded Inductor | ||
| 4 | 0.22 | 0.99 | 41 | 60 | 6.6 | 6.8 | 0.22uH, 20%, 0.99mOhm, 60.0A Max. SMD Molded Inductor | ||
| 4 | 0.24 | 0.99 | 41 | 55 | 6.6 | 6.8 | 0.24uH, 20%, 0.99mOhm, 55.0A Max. SMD Molded Inductor | ||
| 4 | 0.33 | 1.39 | 34 | 42 | 6.6 | 6.8 | 0.33uH, 20%, 1.39mOhm, 42.0A Max. SMD Molded Inductor | ||
| 4 | 0.47 | 2.15 | 27 | 41 | 6.6 | 6.8 | 0.47uH, 20%, 2.15mOhm, 41.0A Max. SMD Molded Inductor | ||
| 4 | 0.68 | 3 | 23 | 36 | 6.6 | 6.8 | 0.68uH, 20%, 3.00mOhm, 36.0A Max. SMD Molded Inductor |
