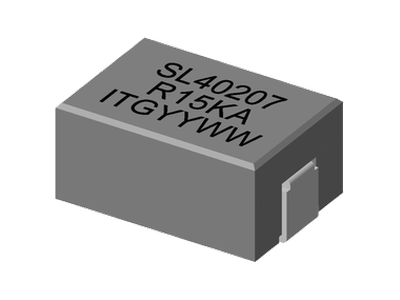

SL40207 Series

• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 70.0 nH to 300.0 nH , custom values are welcomed.
• High current output chokes, up to 73.0 Amp with approx. 20% roll off.
• Low Profile 4.95 mm
• 5.25 mm Max. height.
• 10.10 x 7.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C. RoHs & HF compliant.
• T & R Qtys: 1000 pcs , 13'' Reel.

Data Sheet

Specification of SL40207 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SL40207A-R30KHF	4.95	0.3	0.31	56	22	10.2	7	0.30uH, 10%, 0.31 mOhm DCR, 22A SMD Power Bead	Data Sheet
SL40207A-R22KHF	4.95	0.22	0.31	56	33	10.2	7	0.22uH, 10%, 0.31 mOhm DCR, 33A SMD Power Bead	Data Sheet
SL40207B-R22KHF	4.95	0.22	0.39	53	33	10.2	7	0.22uH, 10%, 0.39 mOhm DCR, 33A SMD Power Bead	Data Sheet
SL40207A-R15KHF	4.95	0.15	0.31	56	48	10.2	7	0.15uH, 10%, 0.31 mOhm DCR, 48A SMD Power Bead	Data Sheet
SL40207B-R15KHF	4.95	0.15	0.39	53	48	10.2	7	0.15uH, 10%, 0.39 mOhm DCR, 48A SMD Power Bead	Data Sheet
SL40207A-R12KHF	4.95	0.12	0.31	56	60	10.2	7	0.12uH, 10%, 0.31 mOhm DCR, 60A SMD Power Bead	Data Sheet
SL40207B-R12KHF	4.95	0.12	0.39	53	60	10.2	7	0.12uH, 10%, 0.39 mOhm DCR, 60A SMD Power Bead	Data Sheet
SL40207A-R10KHF	4.95	0.1	0.31	56	73	10.2	7	0.1uH, 10%, 0.31 mOhm DCR, 73A SMD Power Bead	Data Sheet
SL40207B-R08KHF	5.25	0.1	0.39	53	92	10.1	7	100.0nH, 10%, 0.39mOhm, 92.0A Max. SMD Power Bead	Data Sheet
SL40207B-R10KHF	4.95	0.1	0.39	53	73	10.2	7	0.1uH, 10%, 0.39 mOhm DCR, 73A SMD Power Bead	Data Sheet
SL40207B-R07LHF	5.25	0.07	0.39	53	105	10.1	7	70.0nH, 15%, 0.39mOhm, 105.0A Max. SMD Power Bead	Data Sheet
