SMF1611A 系列

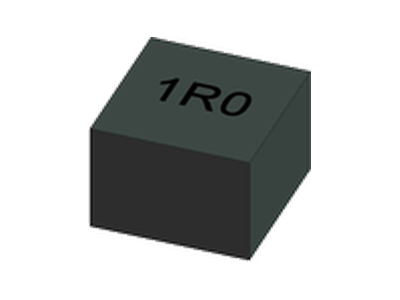

• 4.35 x 4.35 mm foot Print, 3.00mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz
• Inductance range from 0.47uH to 4.70uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing
• Inductance range from 0.47uH to 4.70uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing
| 零件編號 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下載 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.47 | 6 | 14 | 15 | 4.35 | 4.35 | 0.47uH, 20%, 6.0mOhm, 15.0A Typ. SMD Molded Inductor | Data Sheet | ||
| 3 | 4.7 | 35.5 | 5.1 | 4.5 | 4.35 | 4.35 | 4.7uH, 20%, 35.5mOhm, 4.5A Typ. SMD Molded Inductor | Data Sheet | ||
| 3 | 3.3 | 25 | 6.6 | 6 | 4.35 | 4.35 | 3.3uH, 20%, 25.0mOhm, 6.0A Typ. SMD Molded Inductor | Data Sheet | ||
| 3 | 2.2 | 18.6 | 7.8 | 7 | 4.35 | 4.35 | 2.2uH, 20%, 18.6mOhm, 7.0A Typ. SMD Molded Inductor | Data Sheet | ||
| 3 | 1.5 | 11.2 | 9 | 8 | 4.35 | 4.35 | 1.5uH, 20%, 11.20mOhm, 8.0A Typ. SMD Molded Inductor | Data Sheet | ||
| 3 | 1 | 8.45 | 11 | 9.8 | 4.35 | 4.35 | 1.0uH, 20%, 8.45mOhm, 9.8A Typ. SMD Molded Inductor | Data Sheet |
